ATEX TRANSMITTERS
Danfoss T70 ATEX
Radio Remote Controls
IWS offers Danfoss T70 ATEX handheld transmitters for crane, lifting and industrial control applications operating in hazardous locations.
Available in 6- and 10-button configurations, IWS can help select and configure the appropriate ATEX transmitter and receiver system for your application
Explore Our ATEX Transmitters
IWS offers Danfoss T70 ATEX transmitters for hazardous-location crane and industrial control applications, with compact 6-button and expanded 10-button configurations.
T70 1 ATEX
Compact 6-button handheld for crane, lifting and industrial applications in hazardous locations.
T70 2 ATEX
10-button handheld providing expanded control capability for more complex hazardous-location applications.
ATEX HANDHELD TRANSMITTER
T70 1 ATEX
The T70 1 ATEX is a compact 6-button handheld transmitter designed for lifting and industrial applications in hazardous locations. It is especially well suited for overhead crane applications requiring reliable, straightforward control.
T70 1 ATEX Features & Capabilities
6 Two-Step Pushbuttons
Rugged two-step pushbuttons for crane and industrial motion control.
Multiband Radio Technology
400–930 MHz radio platform with full-duplex communication capability.
Automatic Frequency Management
Automatically searches for available or better-quality frequencies with minimal operator intervention.
Removable EEPROM
External memory module allows configuration to be transferred during transmitter replacement or service.
IP65 / NEMA 4 Enclosure
Designed for demanding industrial and hazardous-location environments.
ATEX / IECEx Certification
Ex II 2 GD
Ex ia IIC T4 Gb
Ex ia IIIC T135°C Db
INERIS 08ATEX0006
IECEx INE 09.0014
CML 21UKEX21119
Multiple Transmitter Capability
Supports applications using multiple transmitters with a single receiver.
Multiple Receiver Capability
Allows one transmitter to operate multiple receivers when appropriately configured.
Tandem System Capability
Supports coordinated control of two or more cranes for tandem lifting applications.
Automatic Power Control
Adjusts radio transmission power to help reduce battery consumption and interference between nearby systems.
8-Hour ATEX Battery
Uses the BT06K-ATEX rechargeable battery with an 8-hour rated operating time.
Category 3 / PL d Safety Stop
Safety-rated stop function designed for industrial radio remote control applications.
ATEX HANDHELD TRANSMITTER

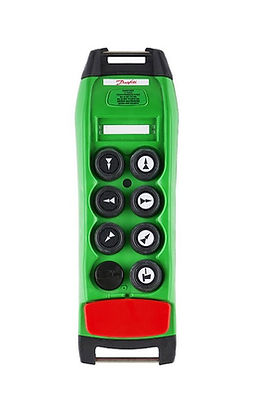

T70 2 ATEX
The T70 2 ATEX is a 10-button handheld transmitter designed for crane, lifting and industrial applications in hazardous locations. Its expanded control layout provides additional flexibility for applications requiring more functions or more complex machine control.
T70 2 ATEX Features & Capabilities
10 Two-Step Pushbuttons
Expanded two-step pushbutton control for crane and industrial motion functions.
Multiband Radio Technology
400–930 MHz radio platform with full-duplex communication capability.
Configurable Control Layout
Supports multiple configurations for applications requiring additional control functions.
Removable EEPROM
External memory module allows configuration to be transferred during transmitter replacement or service.
IP65 / NEMA 4 Enclosure
Designed for demanding industrial and hazardous-location environments.
ATEX / IECEx Certification
Ex II 2 GD
Ex ia IIC T4 Gb
Ex ia IIIC T135°C Db
INERIS 08ATEX0006
IECEx INE 09.0014
CML 21UKEX21119
Auxiliary Control Options
Supports toggle and rotary switches for applications requiring additional operator controls.
Tandem System Capability
Supports tandem system solutions for coordinated lifting applications.
Multiple System Configurations
Can be configured as part of more complex transmitter and receiver arrangements to suit the application.
100 Meter Operating Range
Guaranteed line-of-sight operating range up to 100 m (328 ft).
8-Hour ATEX Battery
Uses the BT06K-ATEX rechargeable battery with an 8-hour rated operating time.
Category 3 / PL d Safety Stop
Safety-rated stop function designed for industrial radio remote control applications.
COMPLETE ATEX RADIO SYSTEMS
Configured for Your Application
IWS can help select and configure the appropriate ATEX transmitter and receiver system for your crane or industrial application. When the receiver is located within a hazardous area, it must be installed in an appropriately rated enclosure with an external antenna arrangement. System requirements are reviewed based on the equipment, operating environment and required control functions.
IWS receivers are not ATEX-rated for direct installation in hazardous locations.
